Comprehensive Guide to Nano-Silicon Insulated Fire-Rated Glass: Class EI Technology, Standards & Architectural Applications

In modern high-rise and commercial architecture, fire safety regulations have rapidly transitioned from basic flame containment to comprehensive thermal insulation. While traditional monolithic fire-rated glass effectively stops flames and toxic smoke (Integrity / Class E), it allows intense radiant heat to pass through freely. In a structural fire, temperatures on the unexposed side of non-insulated glass can exceed 500°C within minutes, igniting combustible interior furnishings and preventing safe human evacuation along escape corridors.

Nano-Silicon Insulated Fire-Rated Glass (纳米硅复合隔热防火玻璃) represents the cutting edge in Class EI (Integrity + Insulation) fire protection technology. Engineered with high-purity inorganic nano-silica intumescent polymer interlayers, this advanced glazing system blocks convective flames and reduces radiant heat transfer to safe, touchable levels (<140°C average unexposed temperature rise) for 30, 60, 90, and 120 minutes.

1. Core Chemical & Structural Mechanics: How Nano-Silicon Glass Works

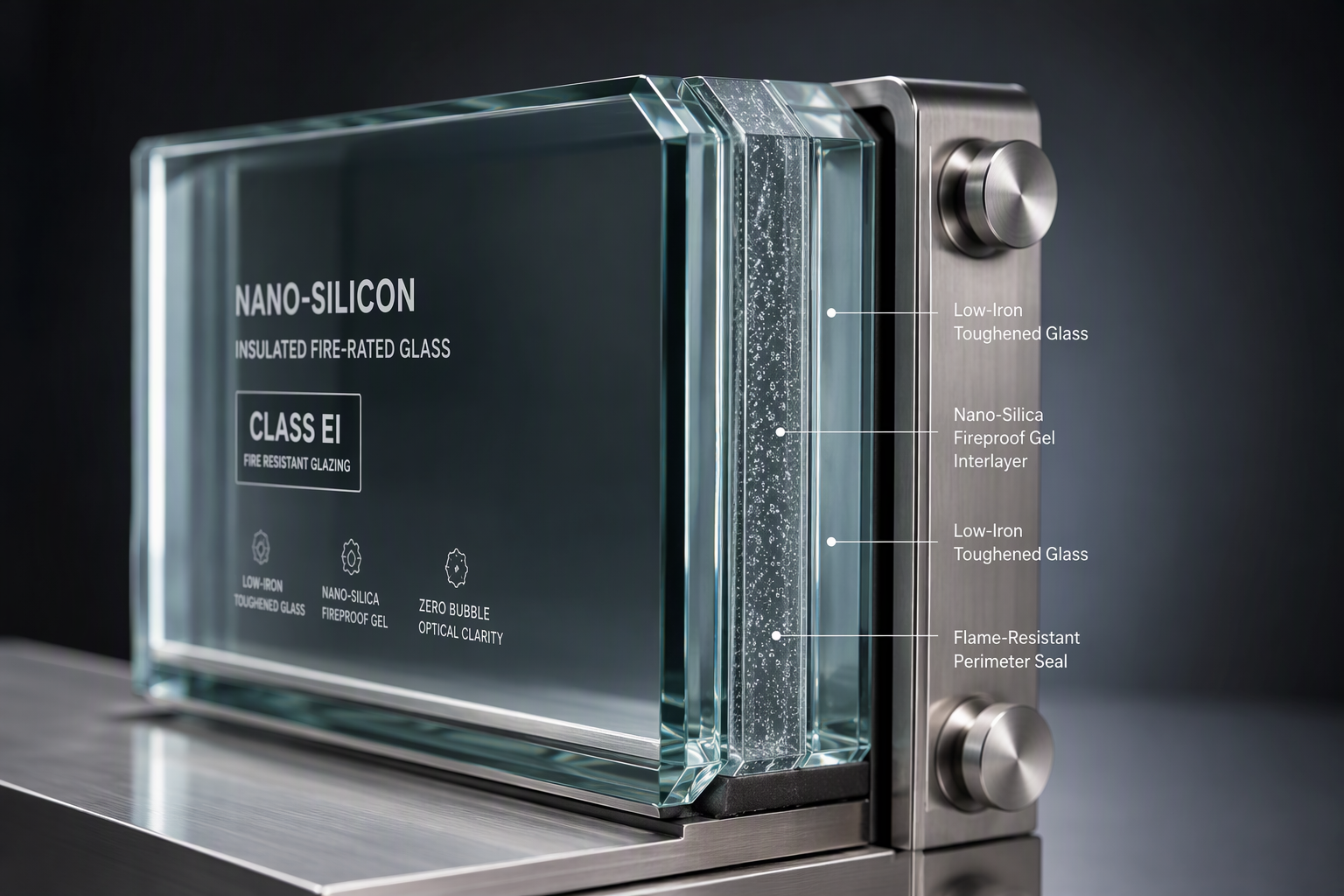

Unlike legacy organic gel formulations (such as early-generation acrylamide compounds) which suffered from UV yellowing, haze formation, and edge bubbling over time, nano-silicon fire-rated glass utilizes an advanced inorganic macromolecular silicate cross-linked network.

The Phase-Transition Fire Barrier Mechanism

1. Ambient State (Normal Operation): The nano-silica gel interlayer remains completely transparent, exhibiting optical clarity and visible light transmittance (VLT) exceeding 86%, visually indistinguishable from premium architectural laminated glass.
2. Thermal Reaction Initiation (T ≥ 120°C): When exposed to furnace heat, the nano-silicon polymer layer initiates a rapid endothermic chemical reaction, releasing micro-encapsulated moisture to absorb vast amounts of latent heat energy.
3. Rigid Ceramic Thermal Shield (T ≥ 300°C): The gel expands up to 3 to 5 times its original volume, transforming into an opaque, solid ceramic-foam carbonaceous insulation blanket. This barrier halts heat radiation, keeping the non-fire side safe and touchable.

2. Technical Specifications & Performance Matrix

Jinan Shenying manufactures a comprehensive spectrum of nano-silicon fire-rated glass products tailored to project-specific architectural requirements and fire compartmentalization criteria:

3. International Fire Testing Standards & Classification Guide

Specifying fire-rated glazing for international procurement requires a clear understanding of global testing methodologies and building code requirements:

1. European Standards (EN 1363, EN 1364-1, EN 1634-1)

• Class E (Integrity): Prevents penetration of flames, smoke, and combustible gas.
• Class EW (Radiation Reduction): Limits radiant heat flux on the unexposed face to ≤ 15 kW/m².
• Class EI (Integrity & Insulation): Unexposed surface temperature rise is strictly restricted to an average of ≤ 140°C and a single-point peak of ≤ 180°C. Jinan Shenying nano-silicon glass complies with full Class EI criteria.

2. North American Standards (UL 263 / ASTM E119 / NFPA 251 / NFPA 252)

• Fire-Protection-Rated vs. Fire-Resistance-Rated: Under the International Building Code (IBC), glazing in fire barriers, shaft enclosures, and exit passageways requiring >45 minutes must be classified as Fire-Resistance-Rated Glazing (ASTM E119 / UL 263) with thermal insulation and pass the mandatory Hose Stream Test.
• Shenying nano-silicon glass units are engineered to maintain structural integrity under high-pressure thermal shock hose stream testing.

3. British Standards (BS 476: Parts 20 & 22)

• Widely recognized across the Middle East, Southeast Asia, and Commonwealth jurisdictions for non-loadbearing vertical partitions, doorsets, and glazed screen assemblies.

4. Architectural Application Scenarios in Commercial Projects

Nano-silicon fire-rated glass is specified across critical architectural zones in modern developments:

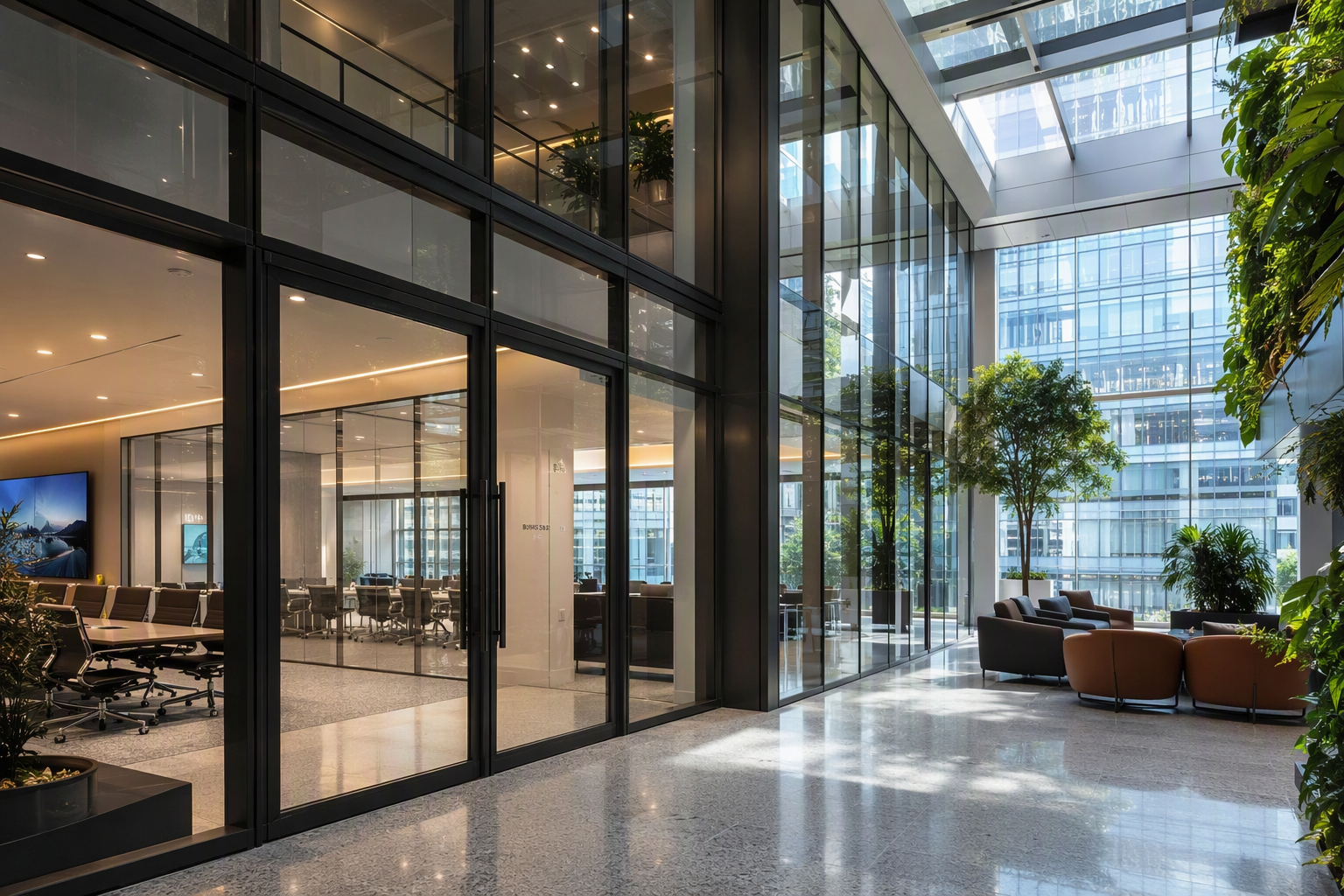

• CBD Corporate Headquarters & Atrium Enclosures: Creates luminous, open-plan workspaces while establishing certified 60-to-120 minute fire compartments between distinct tenant zones and multi-story open atriums.
• Hospital Egress Corridors & Intensive Care Units (ICU): Provides essential radiant heat shielding, enabling safe stretcher evacuation and protecting vulnerable patients from thermal radiation during emergency egress.
• Airport Terminals & Transportation Hubs: Expansive security partitions and concourse dividers that meet strict aviation safety codes without hindering visual sightlines.
• Data Centers & Industrial Control Rooms: Isolates mission-critical server racks and switchgear rooms, preventing high-heat transfer that could trigger secondary equipment fires.

5. Sourcing & Specification Checklist for Overseas B2B Buyers

When requesting engineering quotations or issuing RFQs for nano-silicon fire-rated glass, ensure the following parameters are specified:

1. Required Fire Rating: State both Integrity (E) and Thermal Insulation (I) durations (e.g., EI60 or EI120).
2. Framing Compatibility: Fire-rated glass must be paired with certified fire-rated steel or insulated aluminum profile systems. Shenying provides complete glass-and-frame turnkey assemblies.
3. Edge Cover & Expansion Clearance: Allow an edge bite of at least 15 mm – 20 mm and adequate perimeter expansion gaps filled with ceramic fiber or intumescent glazing tape.
4. Secondary Processing: Specify custom dimensions, polished bevel edges, CNC cutouts for locks/handles, or integrated Low-E insulated double-glazing (DGU/IGU) for exterior facades.
5. Seaworthy Export Packaging: Shenying utilizes export-grade fumigation-free wooden crates with built-in shock absorption, corner protectors, desiccant packs, and moisture-proof plastic wrapping.

6. Why Partner with Jinan Shenying Fire Glass Doors & Windows

Jinan Shenying Fire-Resistant Glass, Doors and Windows Co., Ltd. is a leading Chinese manufacturer dedicated exclusively to fire safety glazing solutions since 2014. With automated multi-chamber laminating autoclaves, high-precision curing lines, and an in-house fire-testing laboratory, Shenying provides certified products to over 100 countries across Europe, North America, the Middle East, Southeast Asia, and Australia.

• Class EI30 to EI120 Certified Performance with international testing compliance.
• Zero UV Yellowing & High Weathering Durability Guarantee for indoor and outdoor installations.
• Custom Engineering Support & Fast Container Lead Times for commercial glazing projects.
• Complete Turnkey Solutions: Fire-rated glass partitions, doors, windows, and smoke barriers.
