Ultimate Guide to Monolithic Fire-Rated Glass: Manufacturing, Fire Ratings & Architectural Applications

In modern commercial and institutional architecture, the balance between natural light transmission and stringent fire compartmentalization has never been more critical. Traditional fire-stopping materials often compromised architectural aesthetics, replacing expansive glass partitions with opaque, heavy barriers.

Monolithic fire-rated glass (单片防火玻璃) has revolutionized this paradigm. By undergoing specialized chemical ion-exchange and physical thermal tempering, high-performance monolithic glass delivers both high visual clarity and dependable integrity against extreme heat, smoke, and flames during building fire emergencies.

1. How Monolithic Fire-Rated Glass Is Manufactured

Unlike standard annealed or regular tempered glass—which shatters rapidly under thermal shock—monolithic fire-resistant glass achieves its structural resilience through a sophisticated dual-strengthening process:

1. Chemical Ion-Exchange Bath (>20 Hours): Float glass panels are immersed in a high-temperature molten potassium salt bath. Potassium ions replace smaller sodium ions on the glass surface, inducing deep compressive surface stress.
2. Precision Physical Tempering: The glass undergoes controlled heating and rapid air-quenching, generating balanced surface and edge tension.
3. Micro-Particle Fracture Characteristics: In the event of ultimate physical breakage, it shatters into fine, blunt fragments, drastically reducing secondary injury risks.

2. Technical Specifications & Performance Matrix

When specifying fire-rated glass for commercial projects, facade engineers and procurement officers must evaluate physical dimensions, optical clarity, and fire resistance periods (Integrity / E-Class).

3. International Standards & Fire Testing Verification

Fire safety regulations vary across global jurisdictions. Reliable B2B suppliers must demonstrate compliance with internationally recognized testing methodologies:

European Standards (EN 1363 / EN 12150)

• Class E (Integrity): Prevents the passage of flames and hot gases to the unexposed side for the designated rating duration (30/60/90/120 minutes).
• Class EW (Integrity + Radiation Control): Limits heat radiation transmission through the glazed panel.

British Standards (BS 476: Part 22)

• Assesses structural integrity under fire conditions in vertical partition assemblies, doorsets, and daylight walls.

4. Primary Application Scenarios in Commercial Projects

Monolithic fire-rated glass is specified across diverse high-traffic and high-risk commercial building environments:

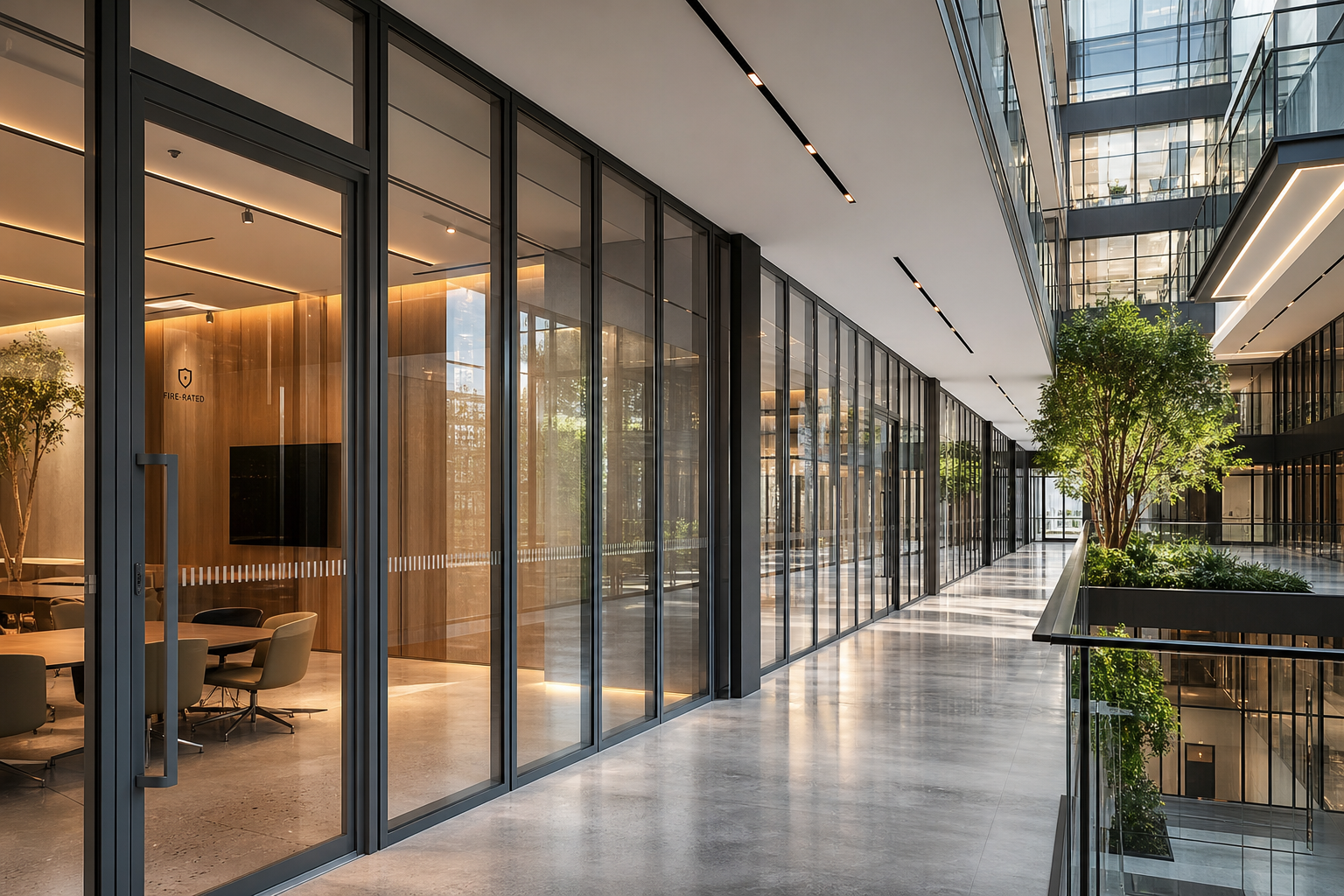

• Commercial Atriums & Internal Partitions: Open-plan office fire compartments that maintain daylight continuity.
• Escape Corridors & Stairwell Daylight Walls: Secure egress routes in high-rise CBD towers, hospitals, and educational institutions.
• Shopping Malls & Smoke Compartments: Paired with smoke baffles and fire-resistant rolling shutters to contain toxic fumes and smoke layers.
• Supercomputing Centers & Industrial Facilities: Clean-room partitions requiring fire barriers without visual obstruction.

5. Sourcing Checklist for Overseas Contractors & Buyers

When issuing a Request for Quotation (RFQ) to Chinese fire glass manufacturers, ensure your project specifications clarify:

1. Fire Rating Requirement: E30, E60, E90, or insulated EI classification.
2. Glass Composition: Monolithic, insulated double-glazed, or laminated.
3. Edge Work & Processing: Polished flat edges, CNC cutouts for hardware, or pre-drilled holes for spider fittings.
4. Export Packaging: High-strength fumigation-free wooden crates with moisture-proof desiccants and protective interlayer paper.
